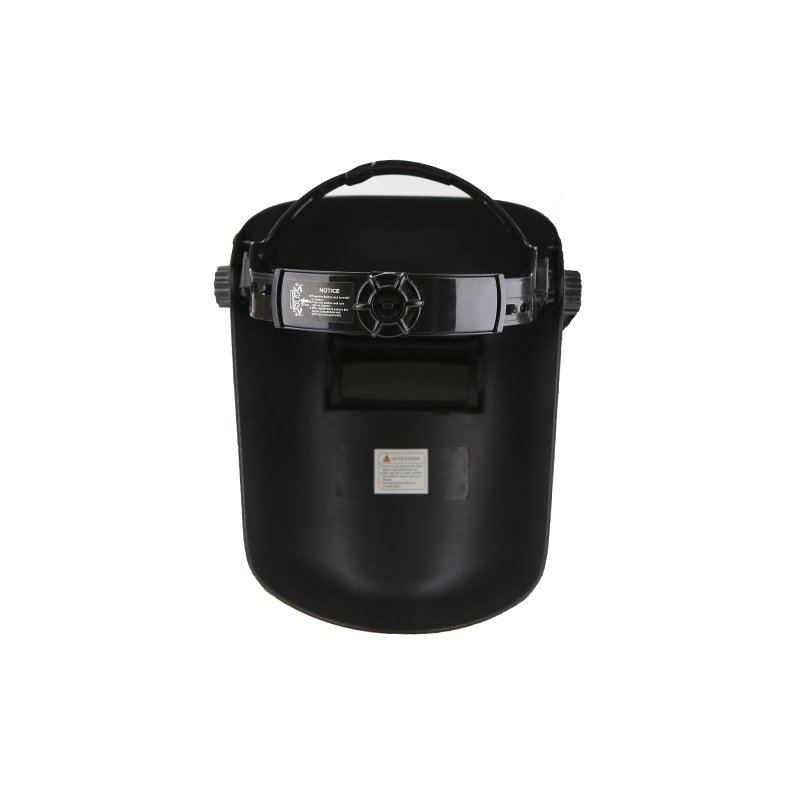

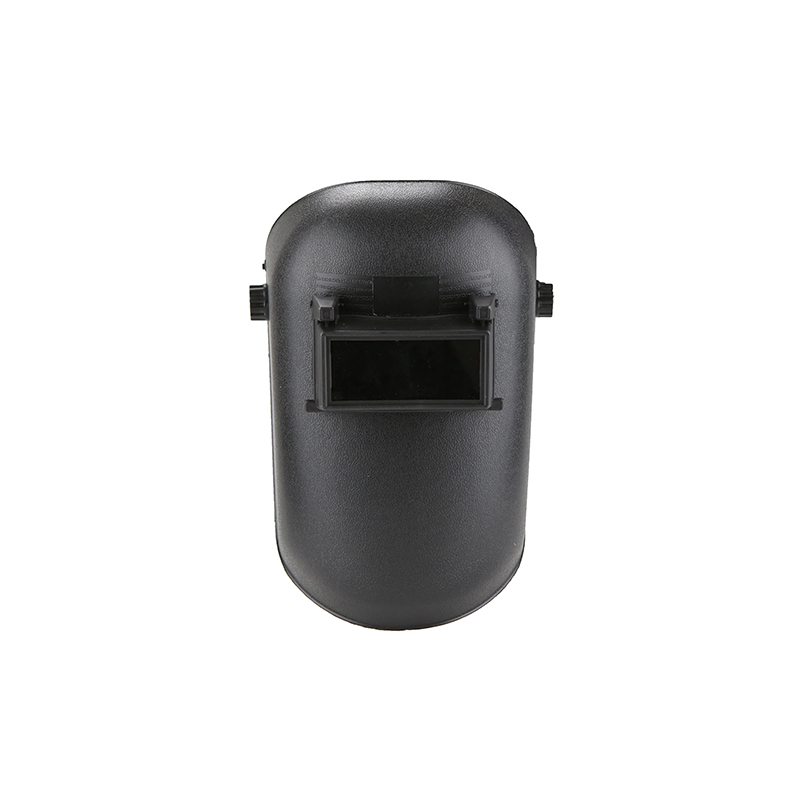

» Heavy-Duty Welding Head Shield for Brazing & Torch Cutting

This industrial welding face shield features a ratchet-type adjustable suspension and a lift-front lens holder, providing reliable protection for gas welding, brazing, and torch cutting operations. Constructed from durable PP material and equipped with a 3-piece lens system, it offers excellent UV/IR protection, impact resistance, and all-day wearing comfort while meeting CE EN175 and ANSI Z87 standards.

Send email to us

Product Detail

Product Description

The Industrial Ratchet Welding Face Shield for Gas Welding & Torch Cutting is designed to deliver dependable protection, comfort, and durability for professional welding environments. Built for demanding industrial applications, this welding head shield combines robust materials with an ergonomic, fully adjustable design to ensure consistent safety performance.
The helmet shell is manufactured from high-quality PP material, offering strong toughness, moisture resistance, and long-term durability. Its fixed front headscreen with lift-front lens holder allows welders to easily raise the viewing window when inspection or positioning is required, improving workflow efficiency without removing the helmet.

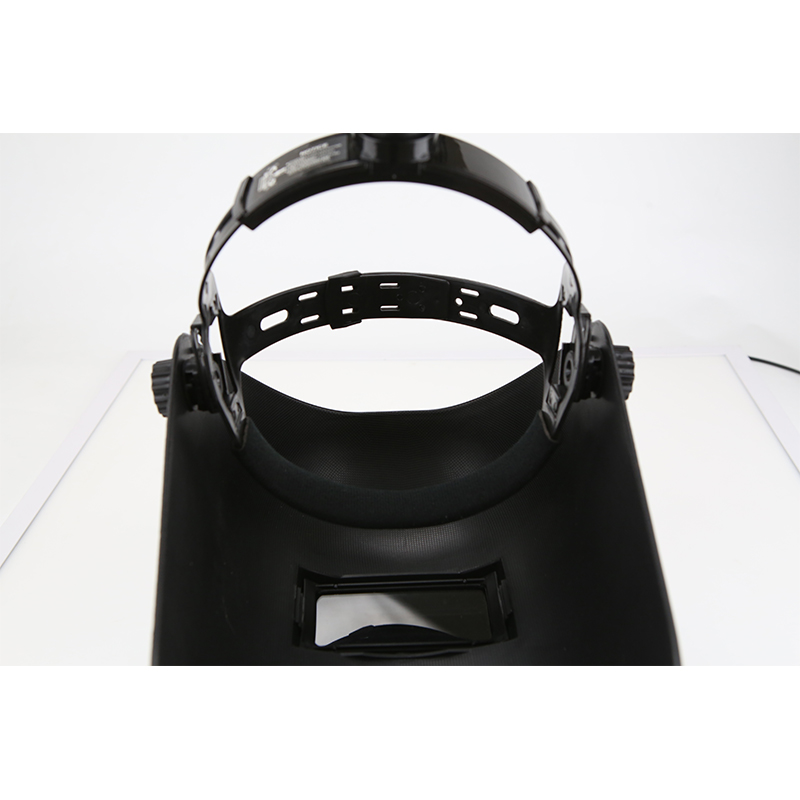

Equipped with a hand ratchet suspension system, the welding face shield ensures precise fit adjustment and stable positioning on the head. The fully adjustable harness and integrated sweatband enhance comfort during extended use, reducing pressure and improving wearability in hot or demanding environments.
The helmet features a 3-piece lens system, consisting of:
● One shade #11 green glass welding filter lens for UV and IR protection
● Two clear impact-resistant lenses (including CR39 anti-spatter cover lens) to protect against sparks, molten metal, and debris
This lens configuration provides excellent optical clarity while shielding the user from welding radiation and incandescent particles. The non-reflective black finish minimizes internal reflections and welding flash glare, further enhancing visual comfort and safety.
Certified to CE EN175, ANSI Z87, and CSA Z94.3, this welding face shield meets international safety requirements and is suitable for professional welding, cutting, and brazing operations.

Product Parameters

● Product Type: Welding Face Shield / Welding Helmet
● Application: Gas welding, brazing, torch cutting
● Shell Material: PP (Polypropylene)
● Color: Black (non-reflective)
● Lens Size: 4-1/4 × 2 inch (108 × 51 mm)
● Lens System: 3-piece lens system
・Shade #11 green glass welding filter lens
・Clear impact-resistant PC lens
・CR39 anti-spatter cover lens
● Lens Holder: Lift-front type
● Suspension Type: Ratchet adjustment
● Harness: Fully adjustable with sweatband

Protection Performance

● Protects against:
・Welding radiation (UV / IR)
・Sparks and molten metal spatter
・Incandescent particles
・Dust and debris
● Provides reliable optical protection and facial coverage

Standards & Certifications

● CE EN175
● ANSI Z87
● CSA Z94.3

Applications / Usage Scenarios

Ideal for use in:
● Gas welding
● Torch cutting
● Brazing operations
● Metal fabrication workshops
● Industrial maintenance and repair
● Construction and manufacturing environments
